Fully automated urine particle analyser
- Compact size
- Fast and reliable particle analysis with fluorescence flow cytometry
- Advanced parameters to support clinical decision making
- Automate and standardise manual workflow procedures
- Flexible configuration options to find your perfect match

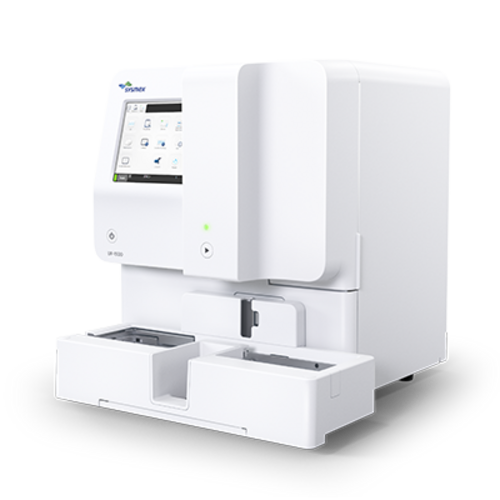

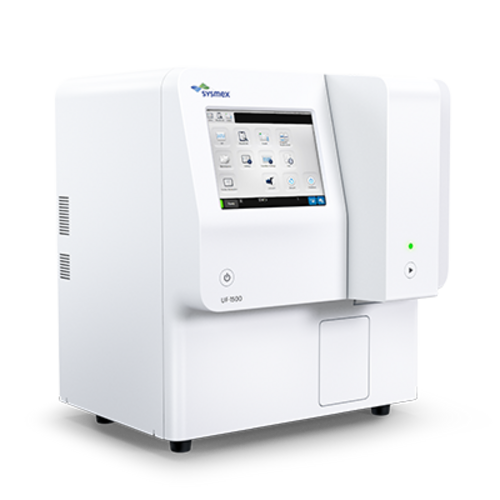

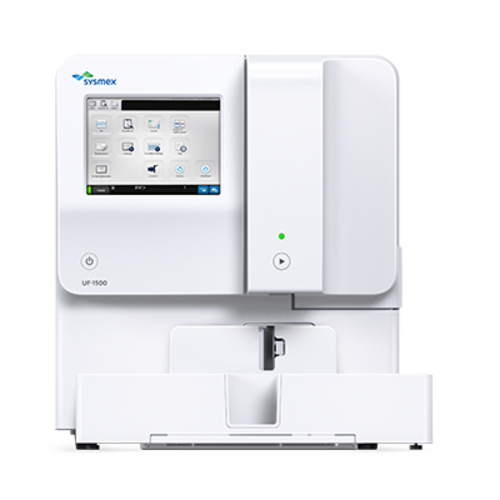

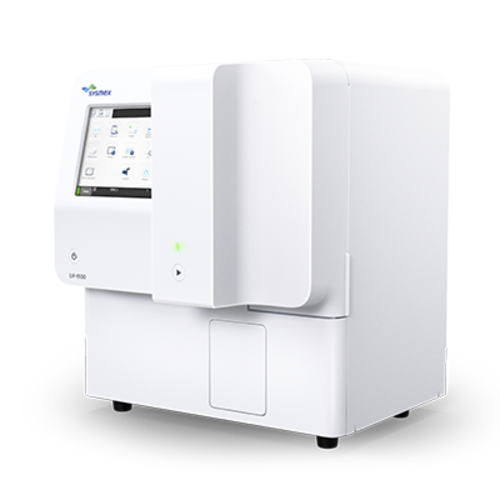

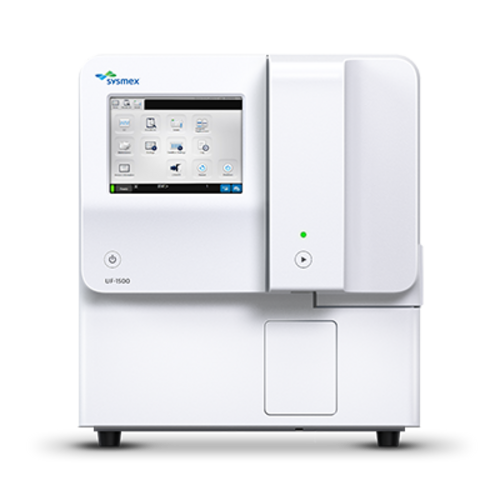

The UF-1500 urine particle analyser from Sysmex is an ideal solution for small to medium-sized labs seeking the latest in urinalysis technology. Despite being ~ 30% smaller than our flagship UF-5000 model, the UF-1500 delivers high-quality and reliable results using our proven fluorescence flow cytometry (FFC) technology.
The UF-1500 offers a throughput capacity of up to 60 samples per hour, and automates several manual steps in the lab workflow, from pipetting, and sample handling, to the results. The UF-1500 enhances the values of urinalysis in clinical decision making by offering a wide range of diagnostic and research parameters. Its modularity allows for configuration in multiple ways to cater to the specific needs of individual labs, providing greater flexibility and versatility.
Sysmex is committed to providing additional service and support for our customers. Our workflow consultancy service enables you to analyse your lab's workflow and working space to optimise efficiency and productivity. We provide installation and maintenance support to ensure the hassle-free operation of your UF-1500. We also offer online and in-person training for lab staff, so that you and your team are fully equipped to maximize the benefits of your UF-1500.
The UF-1500 is an ideal choice for small to medium-sized labs seeking a reliable and sophisticated urine particle analyser. Sysmex's FFC technology, along with automation features, barcode identification, and modularity, make the UF-1500 an excellent option to streamline workflows and provide more accurate results. Choose Sysmex for the latest in urinalysis technology and unparalleled support for your lab's success.
|Dimensions / weights |
W x H x D [mm / kg]
|analyser: approx. 550 × 630 × 560/52 |
main unit (incl. SA-52): 630 × 630 × 626/60
pneumatic unit: 280 × 400 × 355/17
|Technologies||fluorescence flow cytometry with blue semi-conductor laser and hydrodynamic focussing in two different channels |
|Parameters (urine)||Diagnostic |
RBC, NL RBC, WBC, WBC Clumps, EC, Squa.EC, Non SEC, Tran.EC, RTEC, CAST, Hy. CAST, Path. CAST, BACT, X’TAL, YLC, SPERM, MUCUS
SRC, Atyp.C, Cond., Osmo., SF_TC, CW_TC, CB_TC, SF_OTHERS, CW_OTHERS, DEBRIS, RBC-P70FSC, RBC-FSC-DW, Large RBC, Small RBC, Lysed RBC
|Throughput||60 samples/hour (max.)|
|Sampling volume||2 mL (sampler mode), 0.6 mL (STAT mode)|
|Aspiration volume||0.68 mL (sampler mode), 0.52 mL (STAT mode)|
|Sampler unit capacity (SA-52)||50 samples (entry area), 50 samples (exit area)|
|Web application (optional)||Caresphere™ XQC|
Safety data sheets
Regulatory documents, such as Instructions for Use, can be accessed with a valid My Sysmex login:Go to My Sysmex
